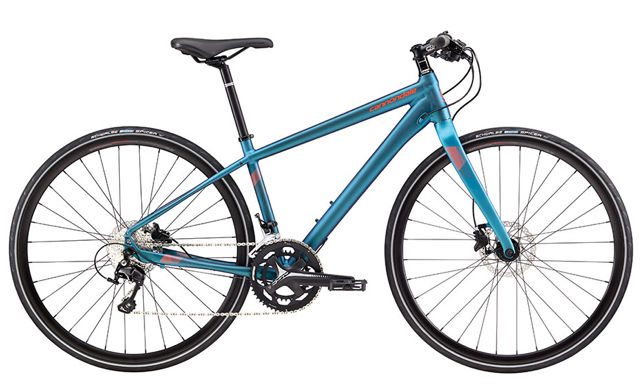

2017 Cannondale Quick Disc Womens geometry
Full frame geometry for the 2017 Cannondale Quick Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 530 | 380 | 73 | 70 | 109 | 542 | 350 | 648 | 68 | 610 | 435 | 1036 | 55 | 67 |
| M | 554 | 388 | 73 | 70 | 134 | 557 | 400 | 690 | 68 | 627 | 435 | 1053 | 55 | 67 |
| T | 578 | 396 | 73 | 70 | 160 | 573 | 450 | 731 | 68 | 644 | 435 | 1070 | 55 | 67 |
All measurements in millimetres unless marked (°) for angles.
