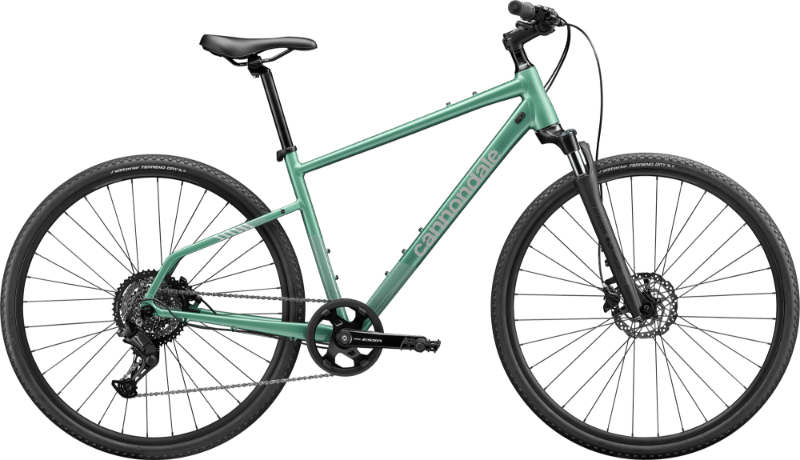

2025 Cannondale Quick CX geometry
Full frame geometry for the 2025 Cannondale Quick CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 573 | 391 | 73 | 69 | 101 | 566 | 350 | 668 | 64 | 649 | 450 | 1091 | 55 | 77 |
| SM | 590 | 402 | 73 | 69 | 120 | 583 | 400 | 721 | 64 | 666 | 450 | 1109 | 55 | 77 |
| MD | 607 | 412 | 73 | 69 | 138 | 598 | 450 | 758 | 64 | 683 | 450 | 1125 | 55 | 77 |
| LG | 623 | 422 | 73 | 69 | 155 | 613 | 500 | 795 | 64 | 699 | 450 | 1141 | 55 | 77 |
| XL | 640 | 432 | 73 | 69 | 173 | 628 | 550 | 832 | 64 | 715 | 450 | 1158 | 55 | 77 |
All measurements in millimetres unless marked (°) for angles.
