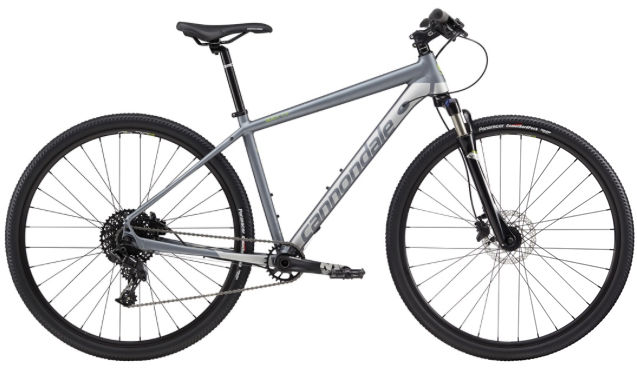

2017 Cannondale Quick CX MK II geometry
Full frame geometry for the 2017 Cannondale Quick CX MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 389 | 73 | 69.5 | 107 | 567 | 400 | 719 | 60 | 635 | 450 | 1078 | 45 | 84 |
| M | 599 | 398 | 73 | 69.5 | 123 | 581 | 450 | 757 | 60 | 650 | 450 | 1093 | 45 | 84 |
| L | 616 | 407 | 73 | 69.5 | 141 | 595 | 500 | 795 | 60 | 665 | 450 | 1109 | 45 | 84 |
| XL | 632 | 415 | 73 | 69.5 | 158 | 608 | 550 | 833 | 60 | 679 | 450 | 1123 | 45 | 84 |
| XXL | 645 | 425 | 73 | 69.5 | 172 | 622 | 600 | 869 | 60 | 694 | 450 | 1138 | 45 | 84 |
All measurements in millimetres unless marked (°) for angles.
