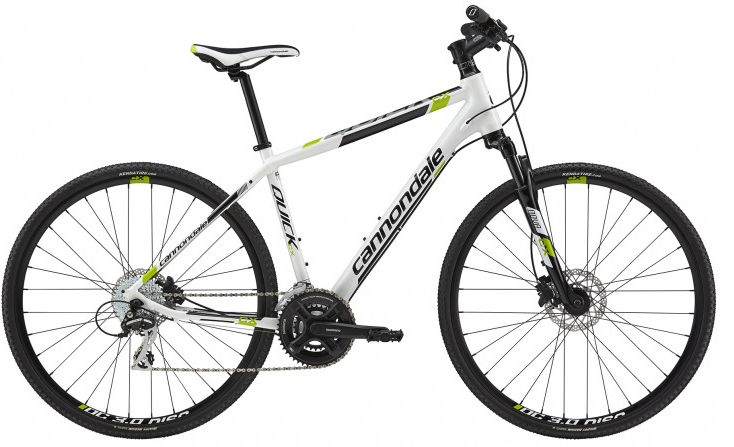

2015 Cannondale Quick CX MK I geometry
Full frame geometry for the 2015 Cannondale Quick CX MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 372 | 74 | 69 | 140 | 550 | 440 | 806 | 67 | 622 | 450 | 1072 | 45 | 87 |
| M | 632 | 383 | 73.5 | 69 | 150 | 570 | 480 | 825 | 67 | 638 | 450 | 1088 | 45 | 87 |
| L | 645 | 388 | 73 | 70 | 160 | 585 | 520 | 846 | 67 | 638 | 450 | 1088 | 45 | 81 |
| XL | 657 | 399 | 73 | 70.5 | 170 | 600 | 560 | 867 | 67 | 648 | 450 | 1098 | 45 | 77 |
| 2XL | 671 | 408 | 72.8 | 71.5 | 180 | 620 | 600 | 889 | 67 | 652 | 450 | 1102 | 45 | 71 |
All measurements in millimetres unless marked (°) for angles.
