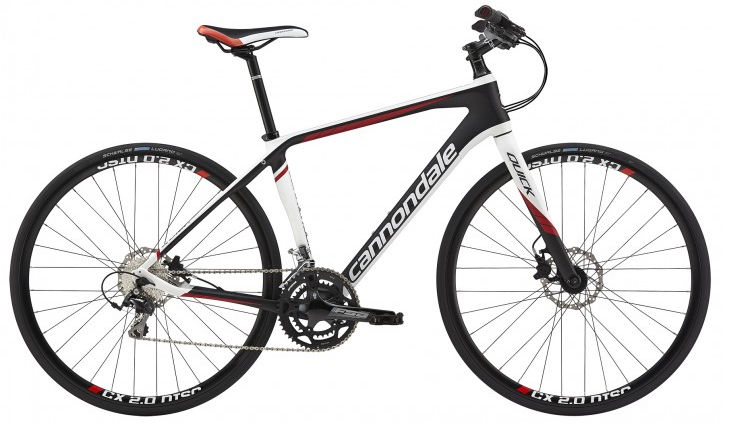

2015 Cannondale Quick Carbon MK I geometry
Full frame geometry for the 2015 Cannondale Quick Carbon MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 552 | 410 | 73.5 | 70 | 130 | 574 | 726 | 68 | 637 | 455 | 1080 | 45 | 80 |
| M/19 | 570 | 410 | 73 | 71 | 145 | 584 | 737 | 68 | 632 | 455 | 1080 | 45 | 73 |
| L/21 | 594 | 417 | 73 | 71 | 170 | 599 | 782 | 68 | 648 | 455 | 1097 | 45 | 73 |
| XL/23 | 623 | 422 | 73 | 71 | 201 | 612 | 810 | 68 | 662 | 455 | 1113 | 45 | 73 |
All measurements in millimetres unless marked (°) for angles.
