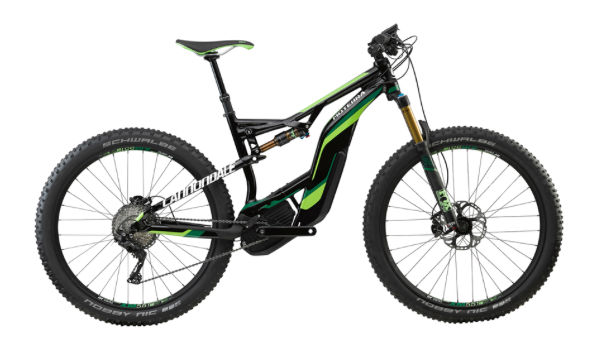

2017 Cannondale Moterra geometry
Full frame geometry for the 2017 Cannondale Moterra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 414 | 75 | 67 | 110 | 574 | 400 | 750 | 19 | 715 | 457 | 1172 | 51 | 100 |
| M | 600 | 425 | 74 | 67.5 | 122 | 601 | 440 | 760 | 19 | 727 | 457 | 1183 | 51 | 96 |
| L | 611 | 452 | 74 | 67.5 | 134 | 631 | 480 | 760 | 19 | 758 | 457 | 1214 | 51 | 96 |
| XL | 611 | 479 | 74 | 67.5 | 134 | 658 | 520 | 770 | 19 | 785 | 457 | 1241 | 51 | 96 |
All measurements in millimetres unless marked (°) for angles.
