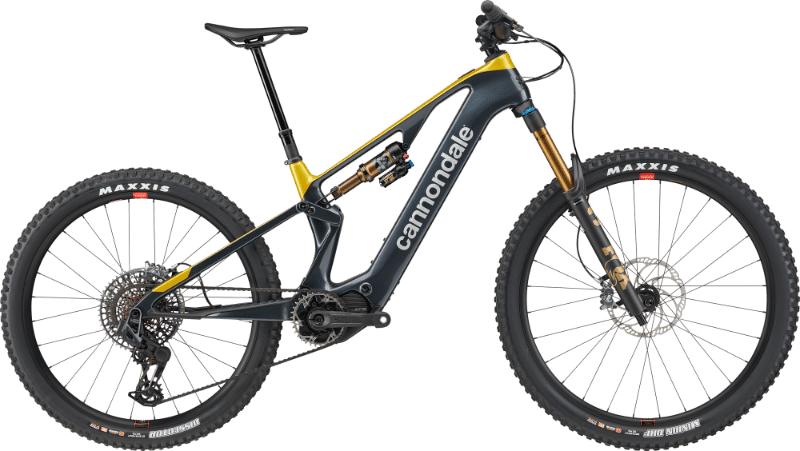

2024 Cannondale Moterra SL geometry
Full frame geometry for the 2024 Cannondale Moterra SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 630 | 420 | 77 | 62.5 | 115 | 565 | 380 | 738 | 30 | 771 | 449 | 1219 | 44 | 145 |
| MD | 639 | 445 | 77 | 62.5 | 125 | 592 | 400 | 737 | 30 | 801 | 449 | 1248 | 44 | 145 |
| LG | 648 | 470 | 77 | 62.5 | 135 | 619 | 445 | 737 | 30 | 830 | 453 | 1283 | 44 | 145 |
| XL | 657 | 505 | 77 | 62.5 | 145 | 656 | 490 | 742 | 30 | 870 | 458 | 1327 | 44 | 144 |
All measurements in millimetres unless marked (°) for angles.
