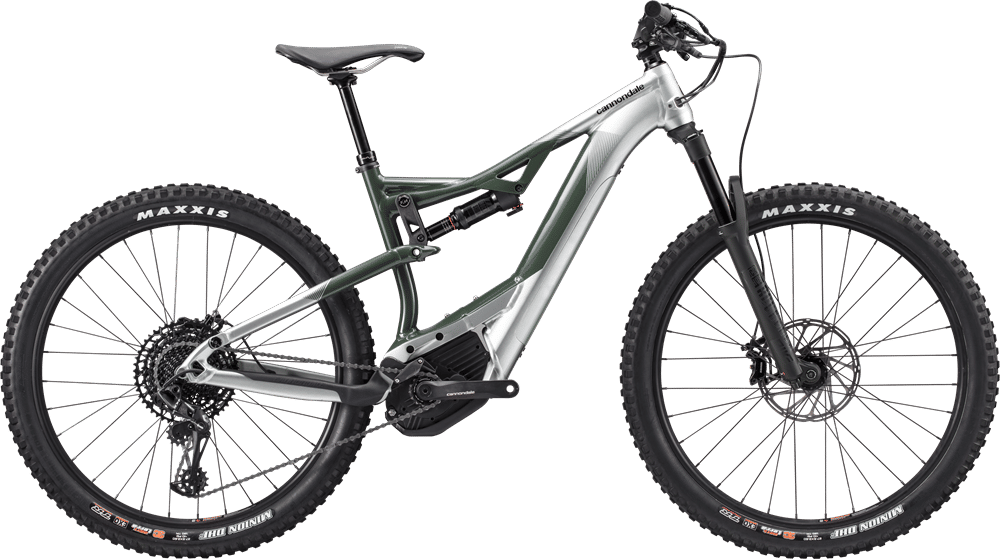

2019 Cannondale Moterra NEO geometry
Full frame geometry for the 2019 Cannondale Moterra NEO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 417 | 75.3 | 67.3 | 110 | 573 | 400 | 743 | 21 | 707 | 457 | 1172 | 46 | 103 |
| M | 607 | 430 | 74.3 | 67.8 | 120 | 600 | 440 | 754 | 21 | 719 | 457 | 1184 | 46 | 100 |
| L | 622 | 454 | 74.3 | 67.8 | 136 | 629 | 480 | 758 | 21 | 749 | 457 | 1215 | 46 | 100 |
| XL | 622 | 482 | 74.3 | 67.8 | 136 | 658 | 520 | 760 | 21 | 776 | 457 | 1242 | 46 | 100 |
All measurements in millimetres unless marked (°) for angles.
