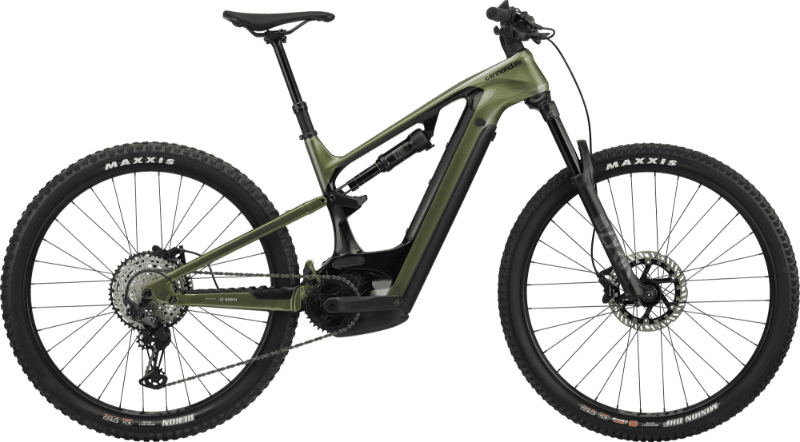

2025 Cannondale Moterra Carbon geometry
Full frame geometry for the 2025 Cannondale Moterra Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 644 | 455 | 77.7 | 64.4 | 125 | 595 | 400 | 762 | 34 | 797 | 455 | 1250 | 44 | 133 |
| SM | 644 | 430 | 77.7 | 64.4 | 125 | 570 | 380 | 752 | 33 | 772 | 455 | 1225 | 44 | 133 |
| LG | 653 | 480 | 77.7 | 64.4 | 135 | 622 | 420 | 775 | 34 | 828 | 460 | 1284 | 44 | 133 |
| XL | 661 | 515 | 77.7 | 64.4 | 145 | 668 | 460 | 785 | 34 | 865 | 460 | 1323 | 44 | 133 |
All measurements in millimetres unless marked (°) for angles.
