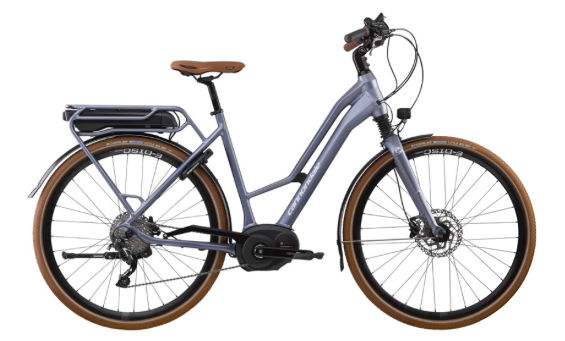

2017 Cannondale Mavaro Performance Womens geometry
Full frame geometry for the 2017 Cannondale Mavaro Performance Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 591 | 415 | 74 | 71 | 160 | 585 | 520 | 67 | 649 | 470 | 1105 | 45 |
| 57 | 591 | 423 | 74 | 72 | 160 | 599 | 570 | 67 | 647 | 470 | 1109 | 45 |
| 62 | 591 | 430 | 73 | 72 | 160 | 618 | 620 | 67 | 654 | 470 | 1116 | 45 |
| 44 | 637 | 381 | 73.5 | 70 | 160 | 570 | 440 | 58 | 642 | 473 | 1109 | 45 |
| 47 | 637 | 398 | 75 | 71 | 160 | 570 | 470 | 58 | 644 | 473 | 1107 | 45 |
| 53 | 637 | 401 | 75 | 71 | 160 | 578 | 530 | 58 | 651 | 473 | 1115 | 45 |
| 58 | 637 | 401 | 75 | 71 | 160 | 590 | 580 | 58 | 665 | 473 | 1129 | 45 |
All measurements in millimetres unless marked (°) for angles.
