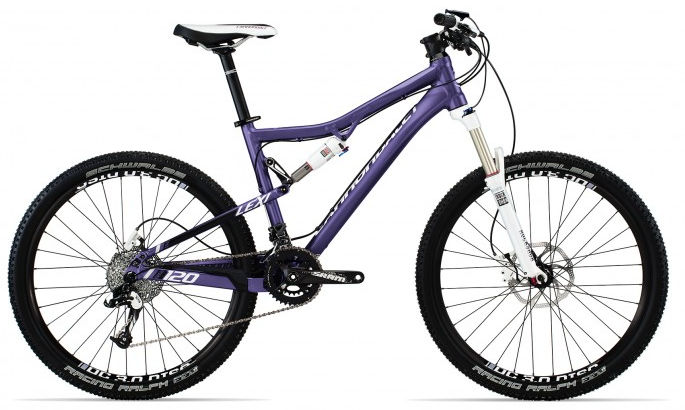

2015 Cannondale Lexi geometry
Full frame geometry for the 2015 Cannondale Lexi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 566 | 357 | 73 | 68.5 | 134 | 530 | 406 | 729 | 2 | 628 | 425 | 1052 | 45 | 82 |
| M | 568 | 401 | 73 | 69 | 134 | 575 | 457 | 759 | 2 | 667 | 425 | 1091 | 45 | 78 |
| S | 568 | 386 | 73 | 69 | 134 | 560 | 432 | 731 | 2 | 652 | 425 | 1076 | 45 | 78 |
All measurements in millimetres unless marked (°) for angles.
