2017 Cannondale · EUSDW

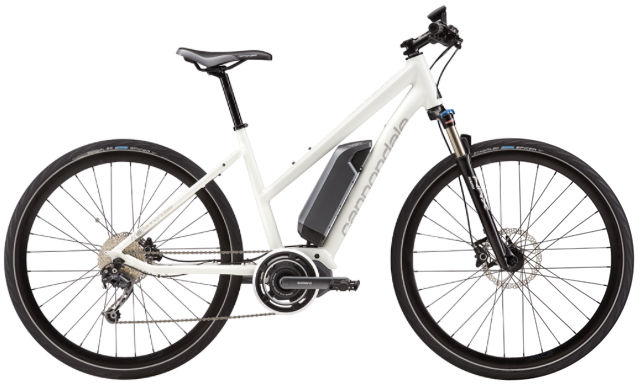

2017 Cannondale Kinneto Womens geometry
Full frame geometry for the 2017 Cannondale Kinneto Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 640 | 378 | 75 | 69 | 154 | 550 | 420 | 67 | 650 | 490 | 1132 | 45 | 87 |
| 47 | 645 | 379 | 73.5 | 70 | 154 | 570 | 470 | 67 | 641 | 490 | 1120 | 45 | 80 |
| 53 | 645 | 381 | 73 | 70 | 154 | 578 | 530 | 67 | 643 | 490 | 1125 | 45 | 80 |
All measurements in millimetres unless marked (°) for angles.
