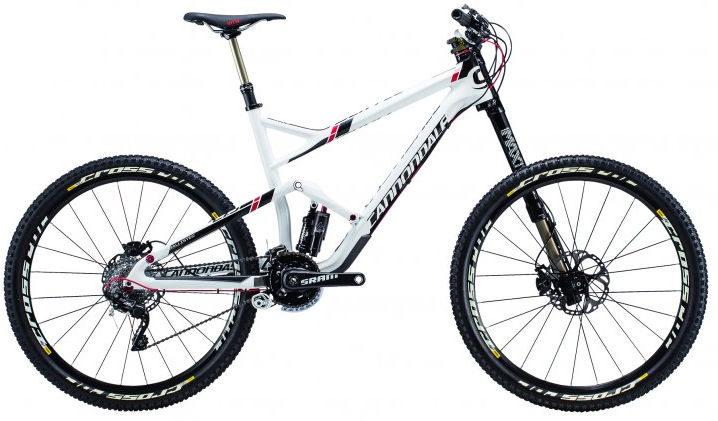

2015 Cannondale Jekyll Carbon MK I geometry
Full frame geometry for the 2015 Cannondale Jekyll Carbon MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 585 | 434 | 73 | 67 | 110 | 592 | 452 | 770 | 7 | 740 | 440 | 1180 | 50 | 97 |
| S | 585 | 406 | 73 | 67 | 110 | 562 | 420 | 767 | 7 | 712 | 440 | 1152 | 50 | 97 |
| L | 597 | 458 | 73 | 67 | 122 | 620 | 483 | 773 | 7 | 769 | 440 | 1208 | 50 | 97 |
| XL | 608 | 484 | 73 | 67 | 134 | 650 | 508 | 776 | 7 | 799 | 440 | 1239 | 50 | 97 |
All measurements in millimetres unless marked (°) for angles.
