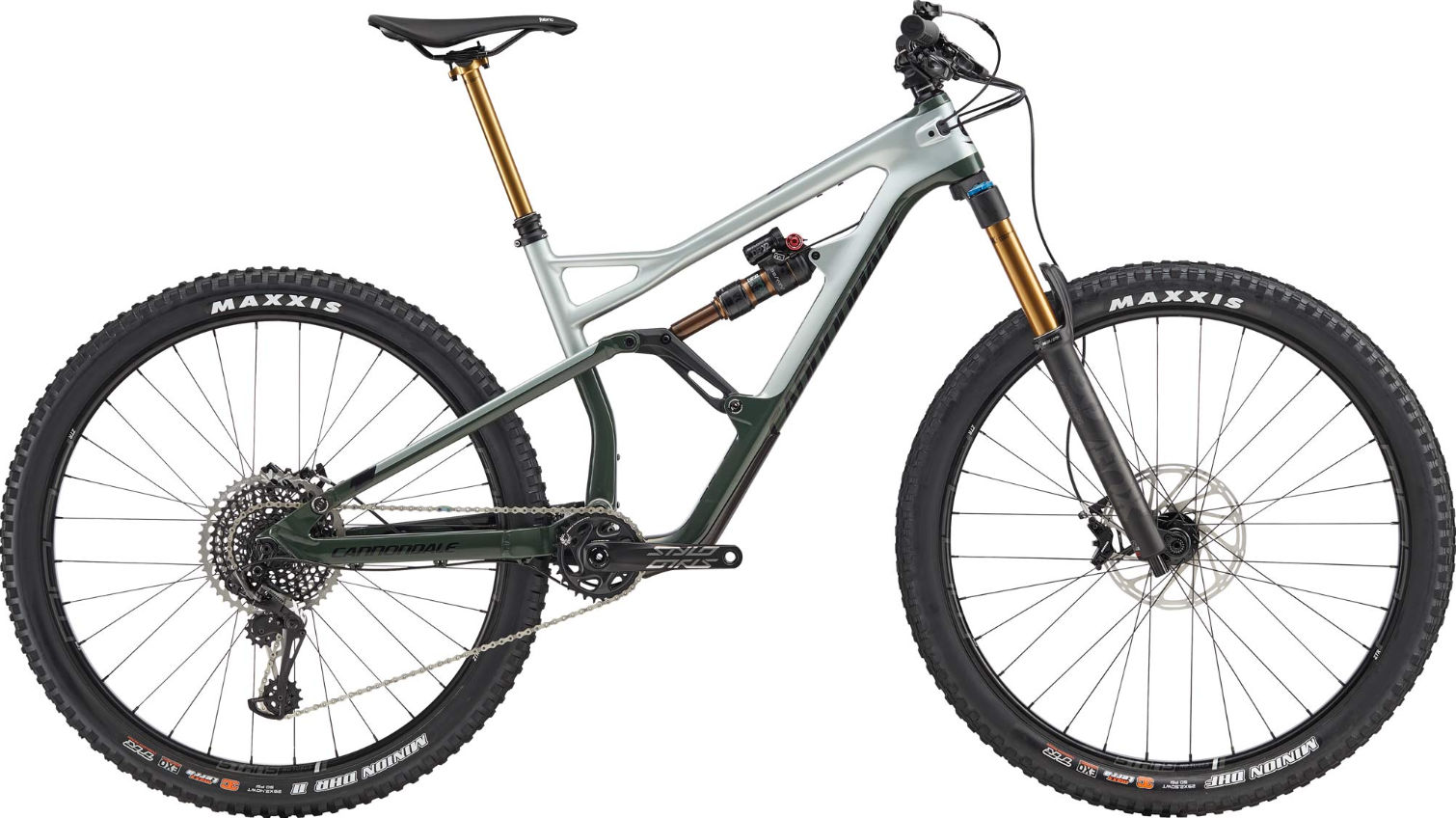

2019 Cannondale Jekyll 29 geometry
Full frame geometry for the 2019 Cannondale Jekyll 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 419 | 75 | 65 | 102 | 586 | 400 | 760 | 16 | 442 | 1189 | 42 | 120 |
| M | 606 | 441 | 75 | 65 | 115 | 611 | 430 | 766 | 16 | 442 | 1216 | 42 | 120 |
| L | 617 | 463 | 75 | 65 | 127 | 636 | 460 | 776 | 16 | 442 | 1243 | 42 | 120 |
| XL | 629 | 488 | 75 | 65 | 140 | 664 | 520 | 788 | 16 | 442 | 1273 | 42 | 120 |
All measurements in millimetres unless marked (°) for angles.
