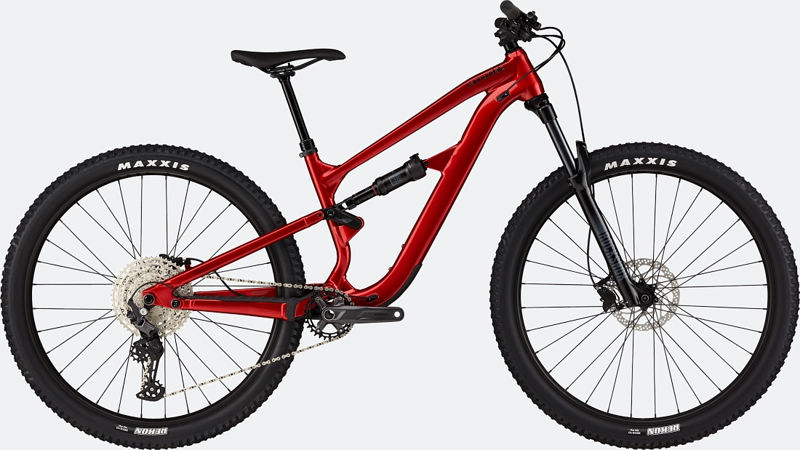

2023 Cannondale Habit geometry
Full frame geometry for the 2023 Cannondale Habit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 575 | 405 | 77.5 | 65.5 | 100 | 527 | 360 | 705 | 1.6 | 69.6 | 434 | 1129 | 3.7 | 12.2 |
| SM | 623 | 430 | 77.5 | 65.5 | 110 | 563 | 380 | 737 | 3.8 | 73.8 | 435 | 1170 | 4.2 | 12.7 |
| MD | 632 | 455 | 77.5 | 65.5 | 120 | 590 | 400 | 738 | 3.8 | 76.7 | 435 | 1200 | 4.2 | 12.7 |
| LG | 641 | 480 | 77.5 | 65.5 | 130 | 617 | 445 | 751 | 3.8 | 80.4 | 445 | 1236 | 4.2 | 12.7 |
All measurements in millimetres unless marked (°) for angles.
