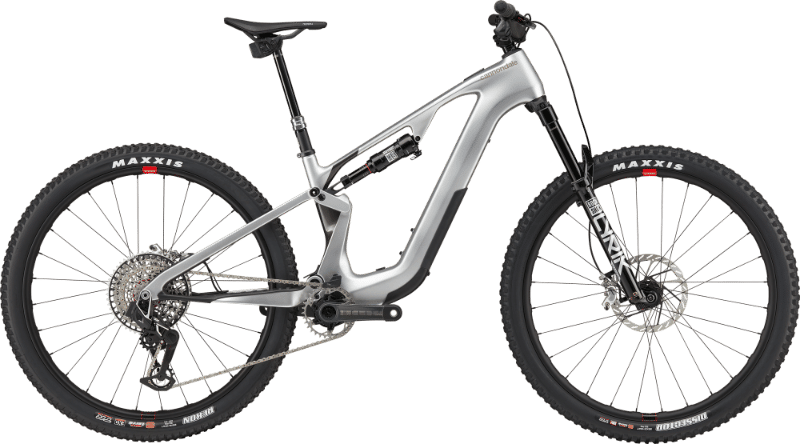

2025 Cannondale Habit Neo geometry
Full frame geometry for the 2025 Cannondale Habit Neo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 629 | 430 | 78 | 64 | 115 | 564 | 380 | 753 | 39 | 768 | 448 | 1212 | 44 | 135 |
| MD | 638 | 455 | 78 | 64 | 125 | 591 | 400 | 753 | 39 | 797 | 448 | 1241 | 44 | 135 |
| LG | 647 | 480 | 78 | 64 | 135 | 618 | 445 | 755 | 39 | 826 | 453 | 1277 | 44 | 135 |
| XL | 656 | 515 | 78 | 64 | 145 | 654 | 490 | 755 | 39 | 866 | 453 | 1316 | 44 | 135 |
All measurements in millimetres unless marked (°) for angles.
