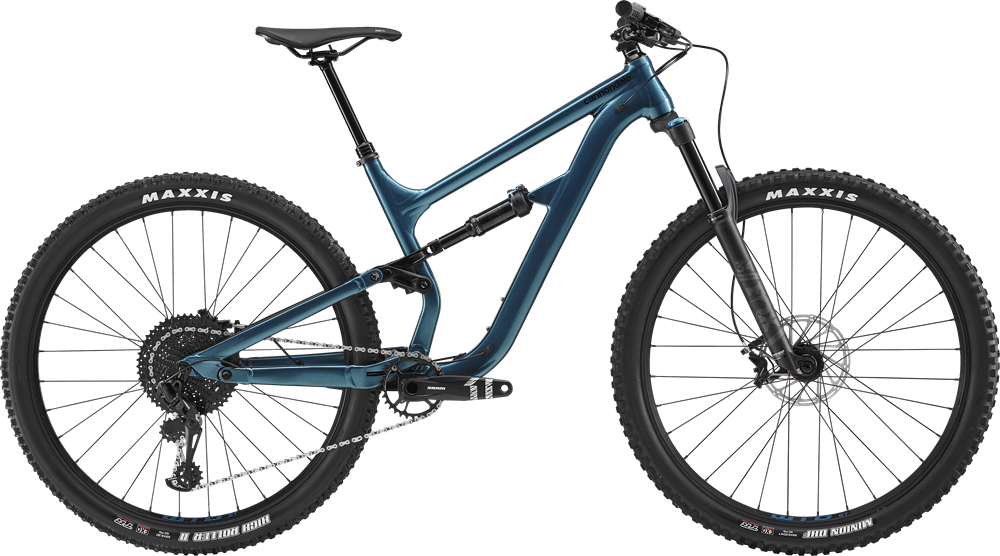

2019 Cannondale Habit MK II geometry
Full frame geometry for the 2019 Cannondale Habit MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 366 | 74.5 | 66.3 | 95 | 538 | 380 | 700 | 28 | 670 | 435 | 1103 | 44 | 112 |
| S | 607 | 400 | 74.5 | 66.3 | 105 | 573 | 400 | 720 | 38 | 71 | 435 | 1142 | 51 | 112 |
| M | 616 | 430 | 74.5 | 66.3 | 115 | 606 | 440 | 750 | 38 | 743 | 435 | 1176 | 51 | 112 |
| L | 625 | 460 | 74.5 | 66.3 | 125 | 639 | 480 | 770 | 38 | 778 | 435 | 1210 | 51 | 112 |
| XL | 634 | 490 | 74.5 | 66.3 | 135 | 671 | 520 | 780 | 38 | 811 | 435 | 1244 | 51 | 112 |
All measurements in millimetres unless marked (°) for angles.
