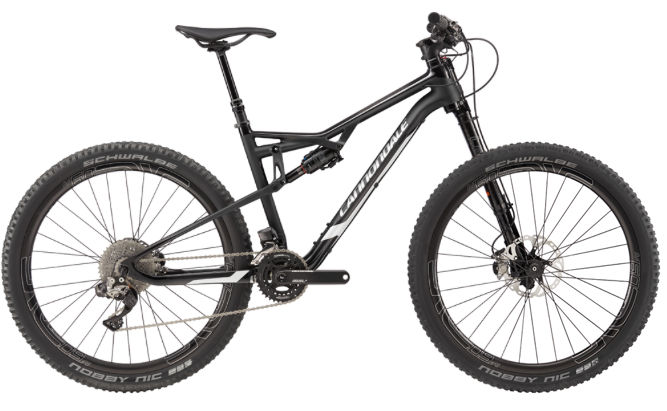

2017 Cannondale Habit Carbon MK I geometry
Full frame geometry for the 2017 Cannondale Habit Carbon MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 399 | 74 | 68 | 97 | 562 | 400 | 722 | 19 | 670 | 429 | 1101 | 50 | 85 |
| M | 582 | 427 | 74 | 68 | 110 | 594 | 440 | 741 | 19 | 703 | 429 | 1134 | 50 | 85 |
| L | 594 | 450 | 74 | 68 | 122 | 620 | 480 | 743 | 19 | 730 | 429 | 1161 | 50 | 85 |
| XL | 605 | 477 | 74 | 68 | 134 | 650 | 520 | 753 | 19 | 761 | 429 | 1193 | 50 | 85 |
All measurements in millimetres unless marked (°) for angles.
