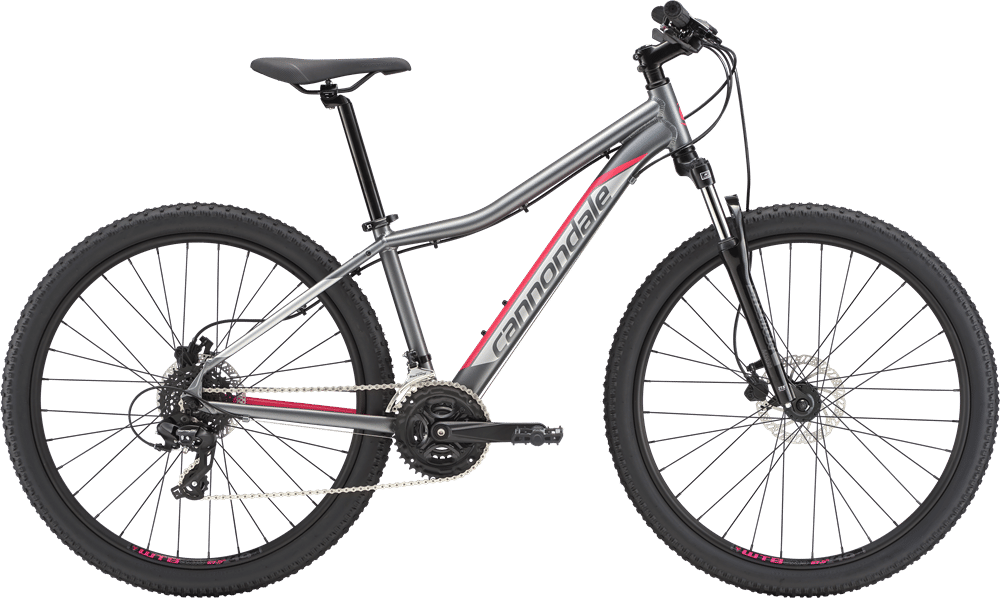

2019 Cannondale Foray geometry
Full frame geometry for the 2019 Cannondale Foray, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT | 583 | 361 | 73 | 69.5 | 91 | 539 | 330 | 700 | 47 | 608 | 435 | 1043 | 45 | 83 |
| SM | 606 | 377 | 73 | 69.5 | 116 | 562 | 381 | 742 | 47 | 633 | 435 | 1068 | 45 | 83 |
| M | 629 | 392 | 73 | 70 | 138 | 584 | 432 | 772 | 47 | 650 | 435 | 1085 | 45 | 82 |
| TL | 652 | 408 | 73.5 | 70 | 162 | 601 | 483 | 802 | 47 | 675 | 435 | 1110 | 45 | 82 |
All measurements in millimetres unless marked (°) for angles.
