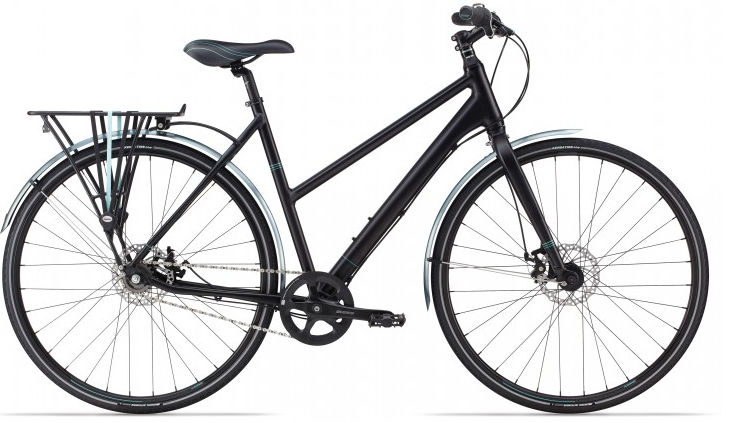

2015 Cannondale Felicity geometry
Full frame geometry for the 2015 Cannondale Felicity, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 380 | 74 | 69 | 150 | 545 | 480 | 67 | 627 | 450 | 1068 | 45 | 87 |
| TL | 589 | 380 | 73.5 | 70 | 160 | 560 | 530 | 67 | 621 | 450 | 1063 | 45 | 81 |
All measurements in millimetres unless marked (°) for angles.
