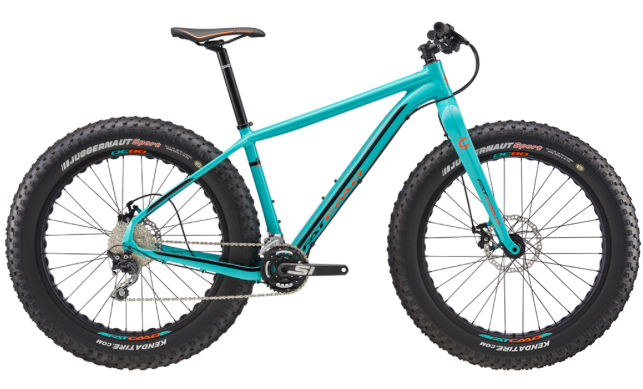

2017 Cannondale FAT CAAD Rigid geometry
Full frame geometry for the 2017 Cannondale FAT CAAD Rigid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 409 | 73 | 69 | 97 | 587 | 390 | 764 | 58 | 670 | 456 | 1120 | 55 | 87 |
| XS | 582 | 384 | 73 | 69 | 97 | 562 | 370 | 760 | 58 | 645 | 456 | 1095 | 55 | 87 |
| M | 594 | 429 | 73 | 69 | 110 | 610 | 440 | 800 | 58 | 695 | 456 | 1144 | 55 | 87 |
| L | 606 | 449 | 73 | 69 | 122 | 634 | 490 | 838 | 58 | 719 | 456 | 1169 | 55 | 87 |
| XL | 617 | 459 | 73 | 69 | 134 | 647 | 540 | 874 | 58 | 733 | 456 | 1183 | 55 | 87 |
All measurements in millimetres unless marked (°) for angles.
