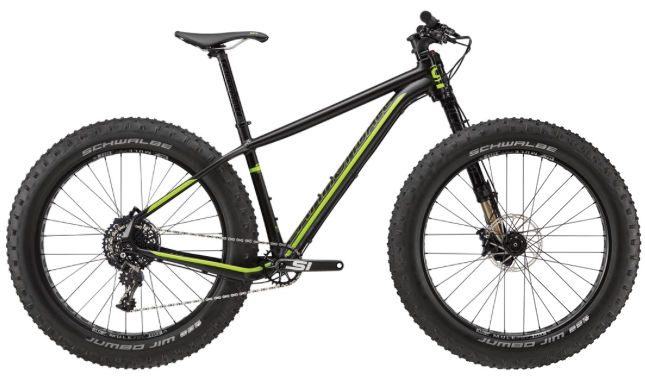

2017 Cannondale FAT CAAD Lefty geometry
Full frame geometry for the 2017 Cannondale FAT CAAD Lefty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 401 | 73 | 69.1 | 97 | 587 | 390 | 443 | 58 | 677 | 456 | 1127 | 60 | 82 |
| XS | 607 | 376 | 73 | 69.1 | 97 | 562 | 370 | 446 | 58 | 652 | 456 | 1102 | 60 | 82 |
| M | 619 | 421 | 73 | 69.1 | 110 | 610 | 440 | 474 | 58 | 702 | 456 | 1152 | 60 | 82 |
| L | 631 | 441 | 73 | 69.1 | 122 | 634 | 490 | 508 | 58 | 726 | 456 | 1176 | 60 | 82 |
| XL | 642 | 451 | 73 | 69.1 | 134 | 647 | 540 | 542 | 58 | 740 | 456 | 1190 | 60 | 82 |
All measurements in millimetres unless marked (°) for angles.
