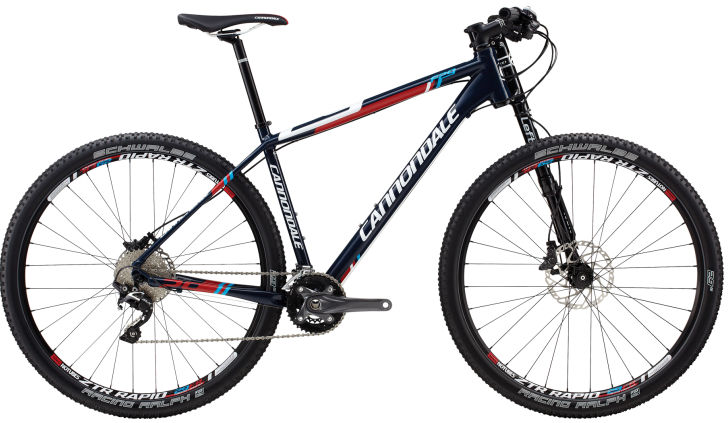

2015 Cannondale F29 geometry
Full frame geometry for the 2015 Cannondale F29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 641 | 426 | 73 | 71 | 134 | 622 | 475 | 829 | 65 | 675 | 444 | 1111 | 45 | 80 |
| M | 641 | 403 | 73.5 | 71 | 134 | 593 | 433 | 809 | 65 | 652 | 444 | 1088 | 45 | 80 |
| S | 641 | 375 | 73.5 | 71 | 134 | 565 | 390 | 788 | 65 | 624 | 444 | 1060 | 45 | 80 |
| XL | 642 | 438 | 72.5 | 71.5 | 134 | 641 | 525 | 853 | 65 | 682 | 444 | 1118 | 45 | 76 |
All measurements in millimetres unless marked (°) for angles.
