2017 Cannondale · MHW

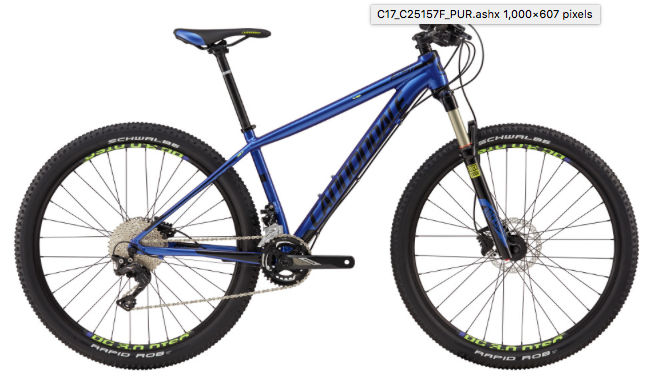

2017 Cannondale F-Si Womens geometry
Full frame geometry for the 2017 Cannondale F-Si Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT | 570 | 377 | 73.4 | 68.9 | 97 | 547 | 365 | 730 | 45 | 635 | 422 | 1053 | 50 | 83 |
| S | 570 | 399 | 73.3 | 69 | 97 | 570 | 385 | 737 | 45 | 656 | 422 | 1074 | 50 | 82 |
| M | 582 | 419 | 73.2 | 69 | 110 | 595 | 435 | 766 | 45 | 680 | 422 | 1099 | 50 | 82 |
All measurements in millimetres unless marked (°) for angles.
