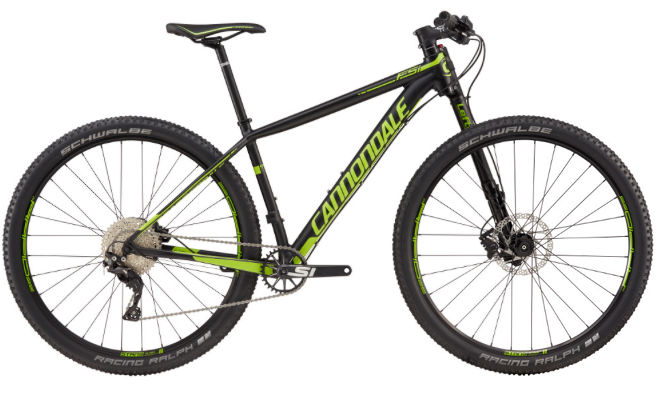

2017 Cannondale F-Si MK II geometry
Full frame geometry for the 2017 Cannondale F-Si MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 399 | 73.3 | 69 | 97 | 570 | 385 | 737 | 45 | 656 | 422 | 1074 | 50 | 82 |
| XS | 570 | 377 | 73.4 | 68.9 | 97 | 547 | 365 | 730 | 45 | 635 | 422 | 1053 | 50 | 83 |
| M | 603 | 414 | 73.2 | 69.7 | 97 | 596 | 435 | 777 | 62 | 676 | 435 | 1103 | 55 | 79 |
| L | 615 | 436 | 73.1 | 69.8 | 110 | 623 | 483 | 806 | 62 | 701 | 435 | 1129 | 55 | 78 |
| XL | 628 | 456 | 73 | 69.9 | 122 | 648 | 533 | 837 | 62 | 724 | 435 | 1152 | 55 | 78 |
All measurements in millimetres unless marked (°) for angles.
