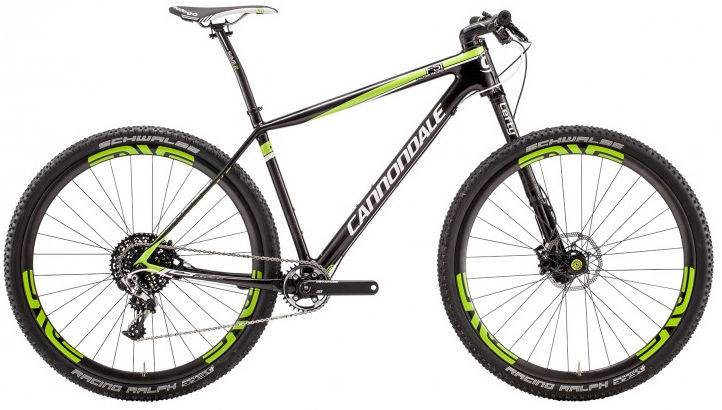

2015 Cannondale F-SI 29 Carbon geometry
Full frame geometry for the 2015 Cannondale F-SI 29 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 392 | 73.3 | 69.5 | 97 | 573 | 385 | 768 | 62 | 652 | 429 | 1076 | 55 | 79 |
| M | 603 | 414 | 73.2 | 69.5 | 97 | 596 | 435 | 781 | 62 | 673 | 429 | 1097 | 55 | 78 |
| L | 615 | 436 | 73.1 | 69.5 | 110 | 623 | 485 | 819 | 62 | 698 | 429 | 1123 | 55 | 78 |
| XL | 628 | 457 | 73 | 69.5 | 122 | 648 | 535 | 850 | 62 | 722 | 429 | 1147 | 55 | 77 |
All measurements in millimetres unless marked (°) for angles.
