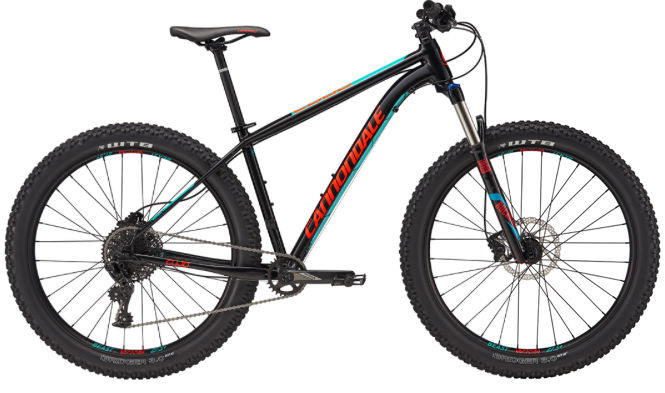

2017 Cannondale Cujo geometry
Full frame geometry for the 2017 Cannondale Cujo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 627 | 383 | 73.3 | 68.5 | 95 | 571 | 385 | 746 | 62 | 663 | 442 | 1098 | 51 | 91 |
| XS | 627 | 359 | 73.3 | 68.5 | 95 | 547 | 355 | 730 | 62 | 639 | 442 | 1074 | 51 | 91 |
| L | 645 | 423 | 73.3 | 68.5 | 115 | 617 | 485 | 816 | 62 | 711 | 442 | 1146 | 51 | 91 |
| M | 645 | 399 | 73.3 | 68.5 | 115 | 593 | 435 | 785 | 62 | 687 | 442 | 1122 | 51 | 91 |
| XL | 659 | 439 | 73.3 | 68.5 | 130 | 637 | 535 | 852 | 62 | 732 | 442 | 1167 | 51 | 91 |
| XXL | 659 | 463 | 73.3 | 68.5 | 130 | 661 | 585 | 882 | 62 | 756 | 442 | 1191 | 51 | 91 |
All measurements in millimetres unless marked (°) for angles.
