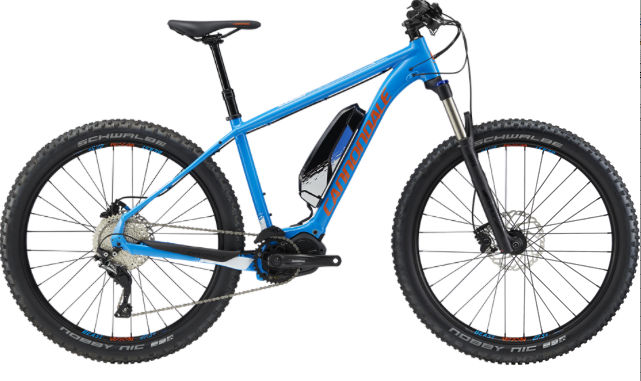

2017 Cannondale Cujo Neo 1 Womens geometry
Full frame geometry for the 2017 Cannondale Cujo Neo 1 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 626 | 363 | 73.3 | 68.5 | 108 | 551 | 360 | 739 | 50 | 647 | 456 | 1098 | 51 | 86 |
| S | 631 | 385 | 73.3 | 68.5 | 113 | 574 | 390 | 757 | 50 | 670 | 456 | 1122 | 51 | 86 |
| M | 638 | 404 | 73.3 | 68.5 | 121 | 596 | 435 | 786 | 50 | 693 | 456 | 1144 | 51 | 86 |
| L | 647 | 425 | 73.3 | 68.5 | 130 | 619 | 485 | 819 | 50 | 717 | 456 | 1168 | 51 | 86 |
| XL | 655 | 444 | 73.3 | 68.5 | 139 | 641 | 535 | 852 | 50 | 739 | 456 | 1191 | 51 | 86 |
All measurements in millimetres unless marked (°) for angles.
