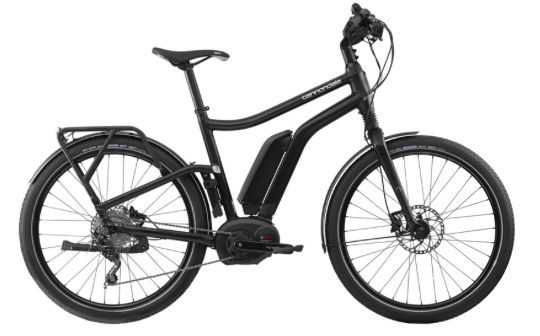

2017 Cannondale Contro-E geometry
Full frame geometry for the 2017 Cannondale Contro-E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 642 | 432 | 73 | 71 | 160 | 628 | 560 | 53 | 684 | 456 | 1135 | 45 | 70 |
| M | 642 | 402 | 73 | 71 | 160 | 598 | 510 | 53 | 654 | 456 | 1105 | 45 | 70 |
| S | 642 | 382 | 73 | 71 | 160 | 578 | 460 | 53 | 634 | 456 | 1085 | 45 | 70 |
All measurements in millimetres unless marked (°) for angles.
