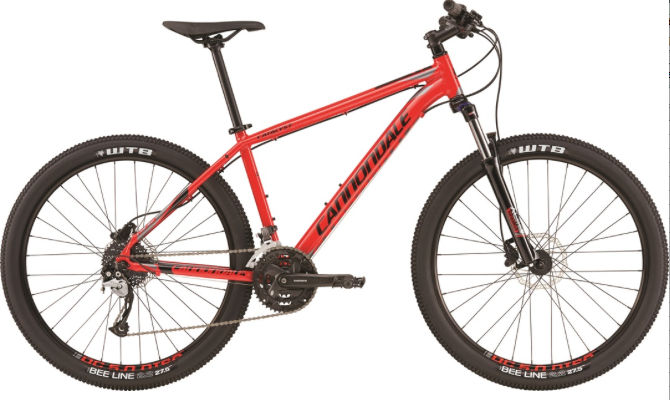

2017 Cannondale Catalyst geometry
Full frame geometry for the 2017 Cannondale Catalyst, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 582 | 362 | 73 | 69.5 | 90 | 540 | 330 | 730 | 47 | 609 | 435 | 1044 | 45 | 83 |
| S | 594 | 414 | 73 | 70 | 100 | 595 | 381 | 753 | 47 | 659 | 435 | 1094 | 45 | 82 |
| M | 608 | 430 | 73.5 | 70 | 115 | 610 | 432 | 786 | 47 | 680 | 435 | 1138 | 45 | 82 |
| L | 629 | 447 | 73.5 | 70.5 | 135 | 633 | 482 | 818 | 47 | 699 | 435 | 1154 | 45 | 81 |
| XL | 652 | 463 | 74 | 70.5 | 160 | 650 | 533 | 858 | 47 | 723 | 435 | 1158 | 45 | 81 |
All measurements in millimetres unless marked (°) for angles.
