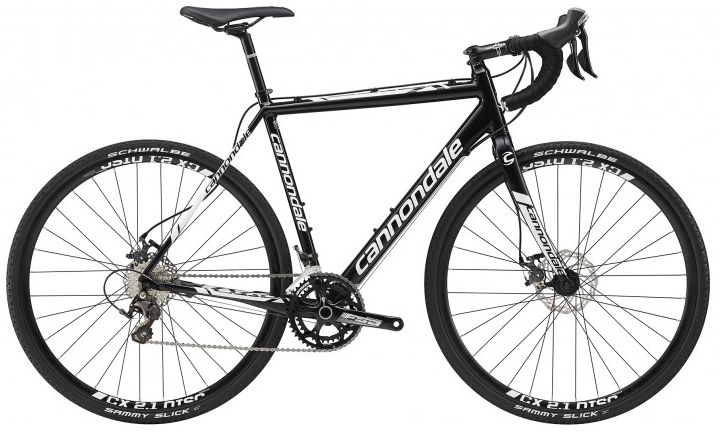

2015 Cannondale CAADX Disc geometry
Full frame geometry for the 2015 Cannondale CAADX Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 512 | 369 | 75 | 69.5 | 120 | 515 | 739 | 67 | 587 | 432 | 1010 | 45 | 77 |
| 48 | 525 | 374 | 74.5 | 70.5 | 130 | 525 | 762 | 67 | 588 | 432 | 1011 | 45 | 71 |
| 51 | 541 | 376 | 74 | 71 | 145 | 535 | 785 | 67 | 591 | 432 | 1014 | 45 | 67 |
| 54 | 554 | 379 | 73.5 | 72 | 155 | 545 | 807 | 67 | 589 | 432 | 1012 | 45 | 61 |
| 56 | 560 | 388 | 73 | 72.5 | 160 | 560 | 820 | 67 | 595 | 432 | 1018 | 45 | 58 |
| 58 | 580 | 397 | 73 | 72.5 | 180 | 575 | 840 | 67 | 610 | 432 | 1018 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
