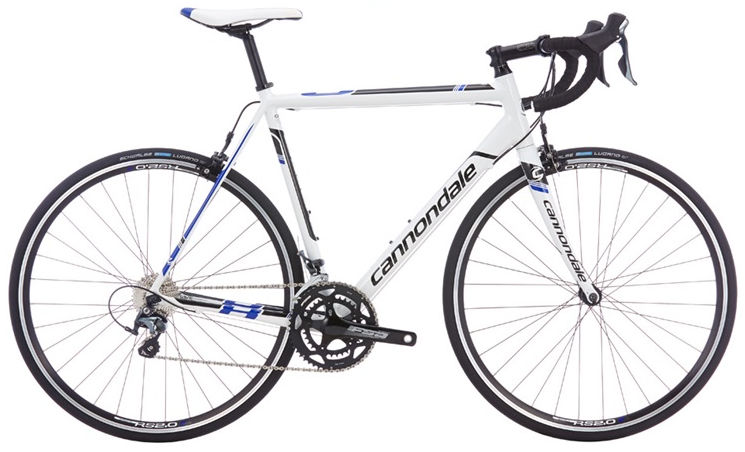

2016 Cannondale CAAD8 MKIV geometry
Full frame geometry for the 2016 Cannondale CAAD8 MKIV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 528 | 364 | 75 | 72 | 125 | 510 | 744 | 72 | 564 | 408 | 966 | 50 | 56 |
| 51 | 544 | 377 | 74.5 | 72.5 | 140 | 530 | 766 | 72 | 578 | 408 | 979 | 50 | 53 |
| 54 | 558 | 379 | 73.5 | 73 | 155 | 545 | 789 | 69 | 576 | 408 | 978 | 45 | 55 |
| 56 | 573 | 390 | 73.5 | 73 | 170 | 560 | 806 | 69 | 591 | 408 | 993 | 45 | 55 |
| 58 | 592 | 395 | 73 | 73.5 | 190 | 575 | 826 | 67 | 597 | 408 | 1000 | 45 | 52 |
| 61 | 620 | 401 | 72.5 | 73.5 | 220 | 595 | 854 | 67 | 611 | 408 | 1014 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
