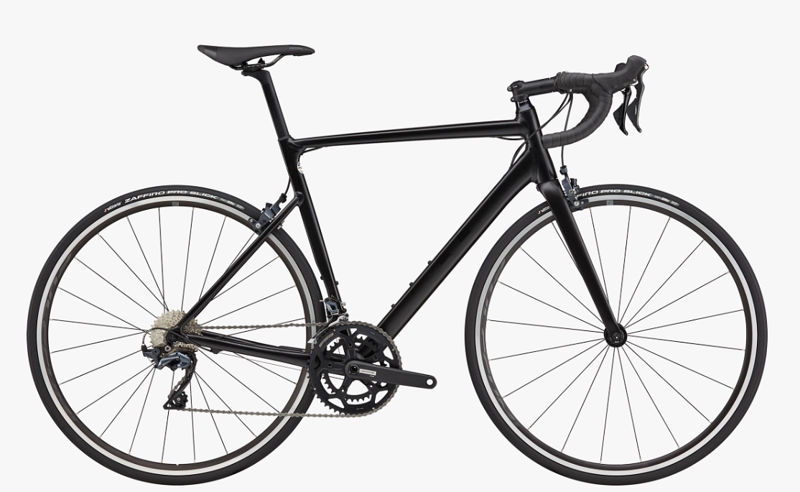

2023 Cannondale CAAD13 geometry
Full frame geometry for the 2023 Cannondale CAAD13, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 505 | 370 | 74.5 | 70.9 | 94 | 510 | 404 | 686 | 79 | 581 | 976 | 55 | 60 |
| 48 | 520 | 374 | 74.3 | 71.2 | 114 | 520 | 442 | 723 | 74 | 589 | 985 | 55 | 58 |
| 51 | 535 | 378 | 74.1 | 71.2 | 130 | 530 | 481 | 753 | 74 | 598 | 994 | 55 | 58 |
| 54 | 555 | 384 | 73.7 | 71.2 | 154 | 546 | 519 | 790 | 72 | 611 | 1008 | 55 | 58 |
| 56 | 575 | 389 | 73.3 | 73 | 164 | 562 | 540 | 805 | 72 | 594 | 992 | 45 | 58 |
| 58 | 595 | 395 | 72.9 | 73 | 188 | 578 | 562 | 829 | 69 | 607 | 1005 | 45 | 58 |
| 60 | 615 | 400 | 72.5 | 73 | 209 | 594 | 583 | 848 | 69 | 618 | 1016 | 45 | 58 |
| 62 | 635 | 406 | 72.1 | 73 | 230 | 611 | 604 | 868 | 69 | 630 | 1028 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
