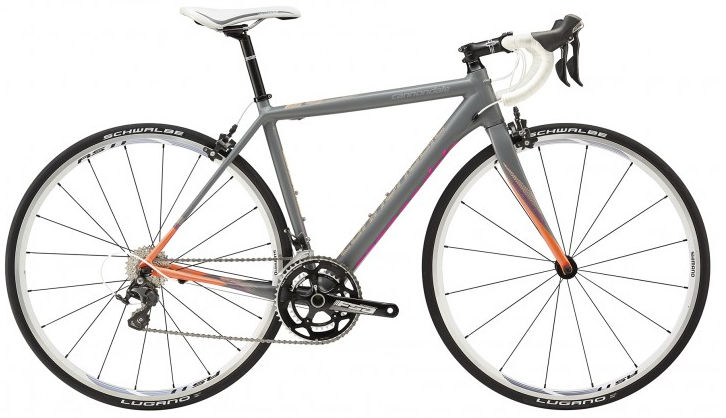

2015 Cannondale CAAD10 W MKII geometry
Full frame geometry for the 2015 Cannondale CAAD10 W MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 500 | 360 | 75 | 70 | 104 | 494 | 722 | 70 | 574 | 405 | 969 | 50 | 74 |
| 48 | 518 | 365 | 74.5 | 71 | 119 | 509 | 745 | 70 | 577 | 405 | 971 | 50 | 67 |
| 51 | 534 | 370 | 74 | 71.5 | 134 | 523 | 767 | 70 | — | 405 | — | 50 | 64 |
| 54 | 553 | 375 | 73.5 | 72 | 150 | 538 | 784 | 70 | 583 | 405 | 978 | 45 | 66 |
| 56 | 571 | 385 | 73.5 | 73 | 165 | 554 | 803 | 70 | 589 | 405 | 984 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
