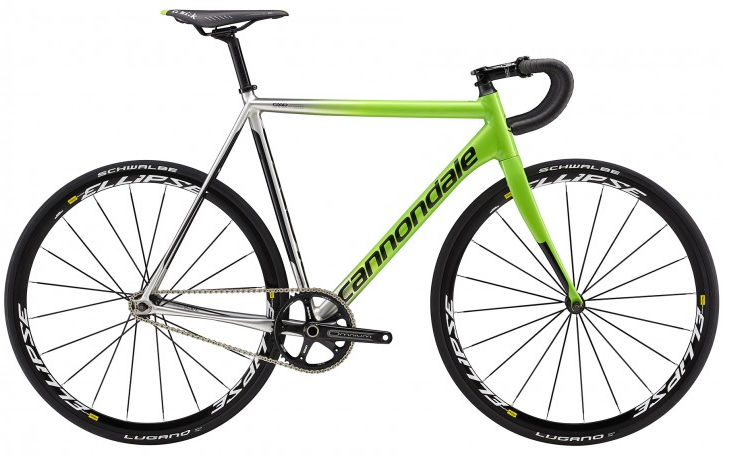

2015 Cannondale CAAD10 Track geometry
Full frame geometry for the 2015 Cannondale CAAD10 Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 503 | 397 | 75.5 | 72.5 | 110 | 515 | 736 | 58 | 588 | 405 | 986 | 45 | 59 |
| 50 | 508 | 402 | 75.5 | 72.5 | 115 | 525 | 748 | 58 | 593 | 405 | 991 | 45 | 59 |
| 52 | 514 | 403 | 75 | 73 | 120 | 535 | 760 | 58 | 590 | 405 | 988 | 45 | 57 |
| 54 | 534 | 408 | 75 | 73 | 140 | 545 | 779 | 58 | 594 | 405 | 992 | 45 | 57 |
| 56 | 544 | 410 | 74.5 | 73 | 155 | 560 | 801 | 58 | 597 | 405 | 995 | 45 | 57 |
| 58 | 567 | 420 | 74.5 | 73 | 175 | 575 | 820 | 58 | 606 | 405 | 1005 | 45 | 57 |
| 60 | 583 | 425 | 74 | 73.5 | 190 | 590 | 837 | 58 | 607 | 405 | 1005 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
