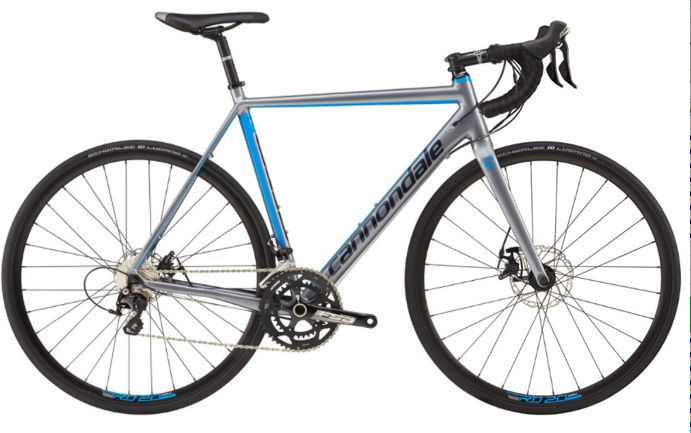

2017 Cannondale CAAD Optimo Disc geometry
Full frame geometry for the 2017 Cannondale CAAD Optimo Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 514 | 372 | 76 | 70.5 | 107 | 500 | 465 | 735 | 74 | 580 | 405 | 974 | 45 | 73 |
| 48 | 518 | 369 | 74.7 | 71.5 | 107 | 510 | 487 | 742 | 74 | 569 | 405 | 963 | 45 | 67 |
| 51 | 533 | 378 | 74.3 | 72.3 | 120 | 528 | 530 | 760 | 74 | 576 | 405 | 970 | 45 | 62 |
| 54 | 551 | 387 | 73.8 | 72.9 | 139 | 547 | 559 | 787 | 72 | 586 | 405 | 980 | 45 | 58 |
| 56 | 566 | 393 | 73.5 | 73.1 | 155 | 561 | 576 | 802 | 72 | 595 | 405 | 989 | 45 | 57 |
| 58 | 583 | 399 | 73.2 | 73.2 | 175 | 575 | 594 | 822 | 69 | 605 | 405 | 1000 | 45 | 56 |
| 60 | 603 | 405 | 72.9 | 73.3 | 195 | 591 | 615 | 841 | 69 | 616 | 407 | 1013 | 45 | 56 |
| 63 | 626 | 411 | 72.6 | 73.4 | 219 | 607 | 635 | 862 | 69 | 628 | 409 | 1027 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
