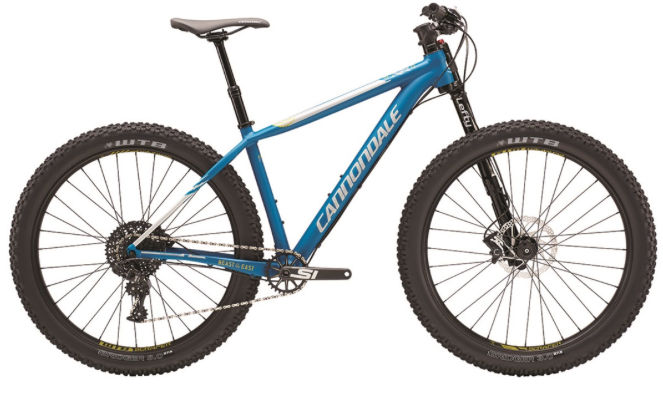

2017 Cannondale Beast of the East geometry
Full frame geometry for the 2017 Cannondale Beast of the East, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 615 | 410 | 73.2 | 68.4 | 97 | 596 | 435 | 754 | 62 | 691 | 435 | 1119 | 55 | 88 |
| S | 615 | 386 | 73.3 | 68.3 | 97 | 570 | 385 | 722 | 62 | 668 | 435 | 1095 | 55 | 88 |
| L | 628 | 432 | 73.1 | 68.5 | 110 | 623 | 485 | 789 | 62 | 717 | 435 | 1145 | 55 | 87 |
| XL | 640 | 452 | 73 | 68.6 | 122 | 648 | 535 | 825 | 62 | 741 | 435 | 1168 | 55 | 87 |
All measurements in millimetres unless marked (°) for angles.
