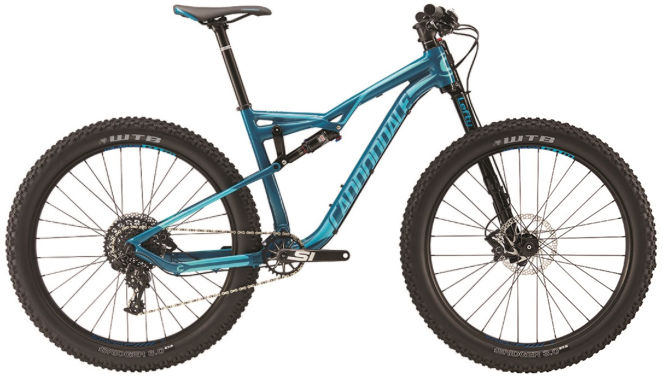

2017 Cannondale Bad Habit geometry
Full frame geometry for the 2017 Cannondale Bad Habit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 386 | 74 | 68 | 97 | 562 | 400 | 729 | 33 | 672 | 443 | 1111 | 55 | 91 |
| M | 595 | 415 | 74 | 68 | 110 | 594 | 440 | 748 | 33 | 705 | 443 | 1144 | 55 | 91 |
| L | 607 | 437 | 74 | 68 | 122 | 620 | 480 | 750 | 33 | 732 | 443 | 1171 | 55 | 91 |
| XL | 618 | 464 | 74 | 68 | 134 | 650 | 520 | 760 | 33 | 763 | 443 | 1202 | 55 | 91 |
All measurements in millimetres unless marked (°) for angles.
