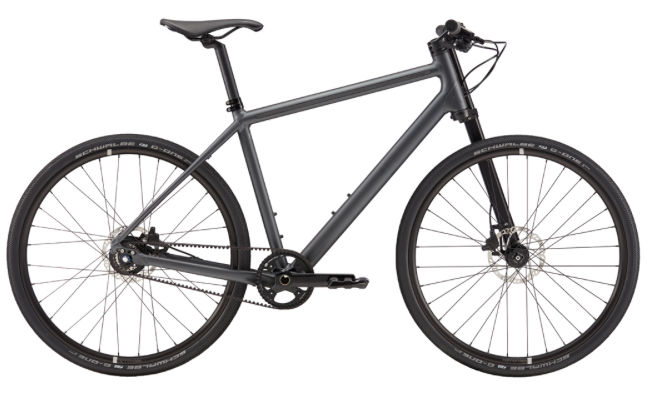

2017 Cannondale Bad Boy MK II geometry
Full frame geometry for the 2017 Cannondale Bad Boy MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 386 | 73.5 | 70 | 160 | 560 | 450 | 762 | 53 | 606 | 435 | 1036 | 22 | 99 |
| M | 618 | 409 | 73.5 | 70 | 160 | 592 | 490 | 792 | 53 | 640 | 435 | 1070 | 22 | 99 |
| L | 660 | 423 | 73.5 | 70 | 180 | 618 | 525 | 833 | 53 | 669 | 435 | 1099 | 22 | 99 |
| XL | 688 | 446 | 73.5 | 70 | 180 | 650 | 550 | 858 | 53 | 703 | 435 | 1133 | 22 | 99 |
All measurements in millimetres unless marked (°) for angles.
