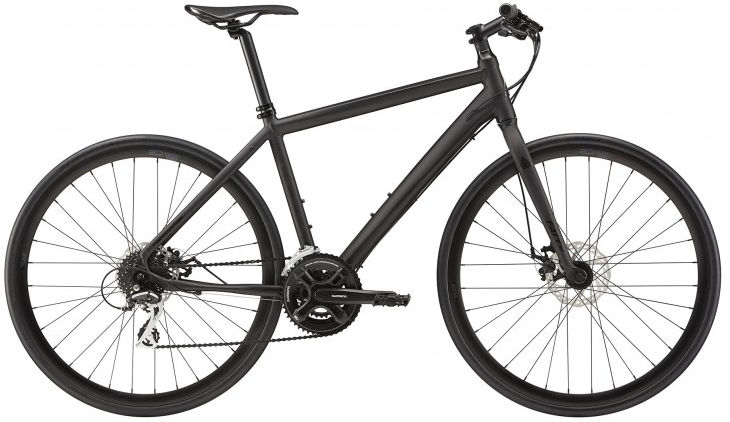

2015 Cannondale Bad Boy MK I geometry
Full frame geometry for the 2015 Cannondale Bad Boy MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 371 | 74 | 71 | 130 | 550 | 390 | 739 | 51 | 614 | 435 | 1044 | 45 | 78 |
| M | 632 | 381 | 73.5 | 71 | 150 | 575 | 460 | 782 | 51 | 628 | 435 | 1058 | 45 | 72 |
| L | 651 | 395 | 73 | 71 | 170 | 600 | 510 | 814 | 51 | 651 | 435 | 1081 | 45 | 72 |
| XL | 670 | 404 | 72.5 | 71 | 190 | 620 | 560 | 845 | 51 | 668 | 435 | 1098 | 45 | 72 |
All measurements in millimetres unless marked (°) for angles.
