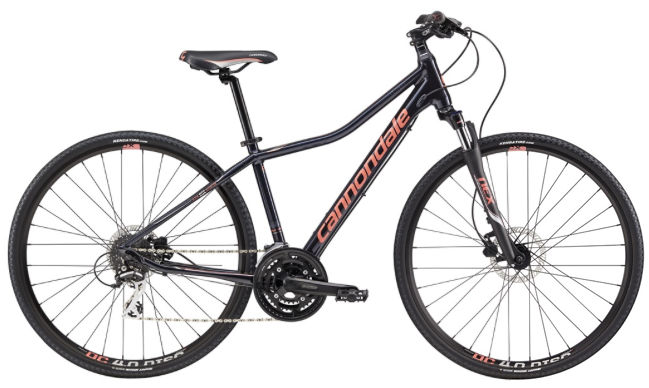

2015 Cannondale Althea geometry
Full frame geometry for the 2015 Cannondale Althea, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 357 | 74 | 69 | 120 | 530 | 370 | 691 | 67 | 450 | 1071 | 45 | 87 |
| M | 622 | 372 | 74 | 69 | 140 | 550 | 415 | 723 | 67 | 450 | 1064 | 45 | 87 |
| TL | 645 | 384 | 73.5 | 70 | 160 | 575 | 460 | 757 | 67 | 450 | 1073 | 45 | 81 |
All measurements in millimetres unless marked (°) for angles.
