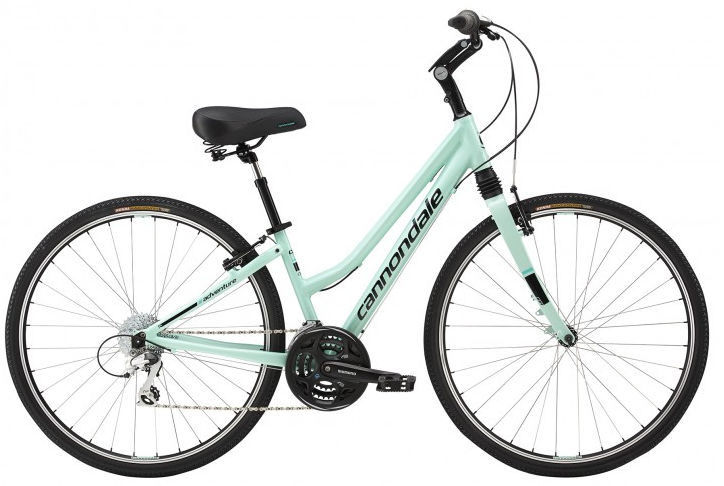

2015 Cannondale Adventure geometry
Full frame geometry for the 2015 Cannondale Adventure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 345 | 70 | 69 | 136 | 555 | 368 | 700 | 68 | 592 | 465 | 1049 | 45 | 85 |
| TL | 594 | 349 | 70 | 69 | 156 | 565 | 457 | 732 | 68 | 603 | 465 | 1059 | 45 | 85 |
All measurements in millimetres unless marked (°) for angles.
