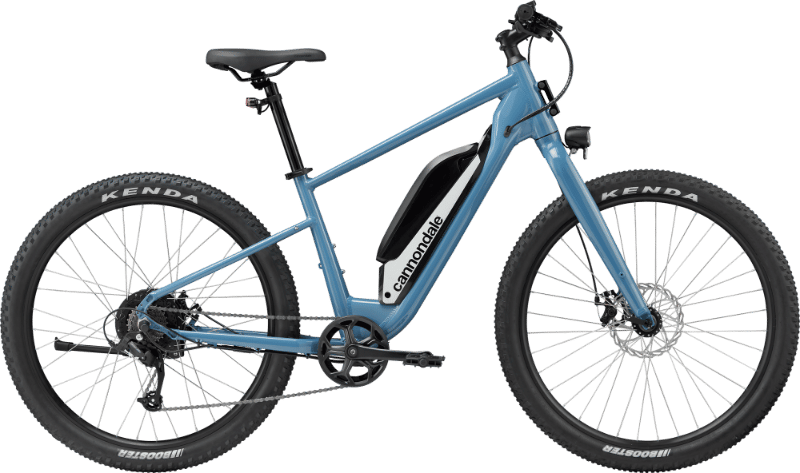

2023 Cannondale Adventure Neo Allroad geometry
Full frame geometry for the 2023 Cannondale Adventure Neo Allroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 662 | 383 | 73 | 67 | 180 | 585 | 440 | 795 | 60 | 691 | 490 | 1174 | 48 | 103 |
| LG | 675 | 404 | 73 | 67 | 195 | 610 | 500 | 840 | 60 | 717 | 490 | 1201 | 48 | 103 |
All measurements in millimetres unless marked (°) for angles.
