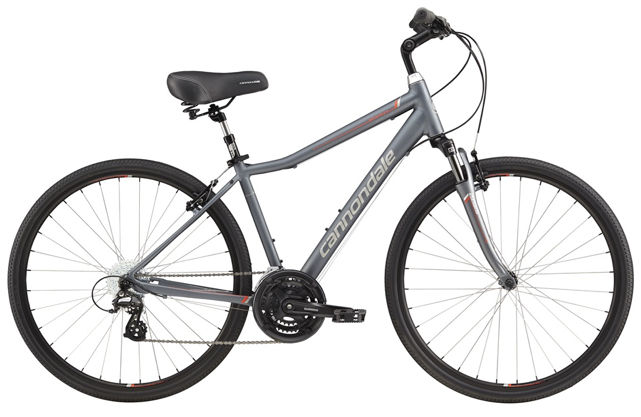

2017 Cannondale Adventure 2 geometry
Full frame geometry for the 2017 Cannondale Adventure 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 348 | 70 | 69 | 145 | 572 | 380 | 701 | 68 | 610 | 465 | 1066 | 45 | 85 |
| M | 626 | 362 | 70 | 69 | 155 | 590 | 445 | 738 | 68 | 628 | 465 | 1085 | 45 | 85 |
| L | 635 | 374 | 70 | 69 | 165 | 605 | 510 | 776 | 68 | 643 | 465 | 1100 | 45 | 85 |
| XL | 645 | 390 | 70 | 69 | 175 | 625 | 575 | 812 | 68 | 663 | 465 | 1120 | 45 | 85 |
All measurements in millimetres unless marked (°) for angles.
