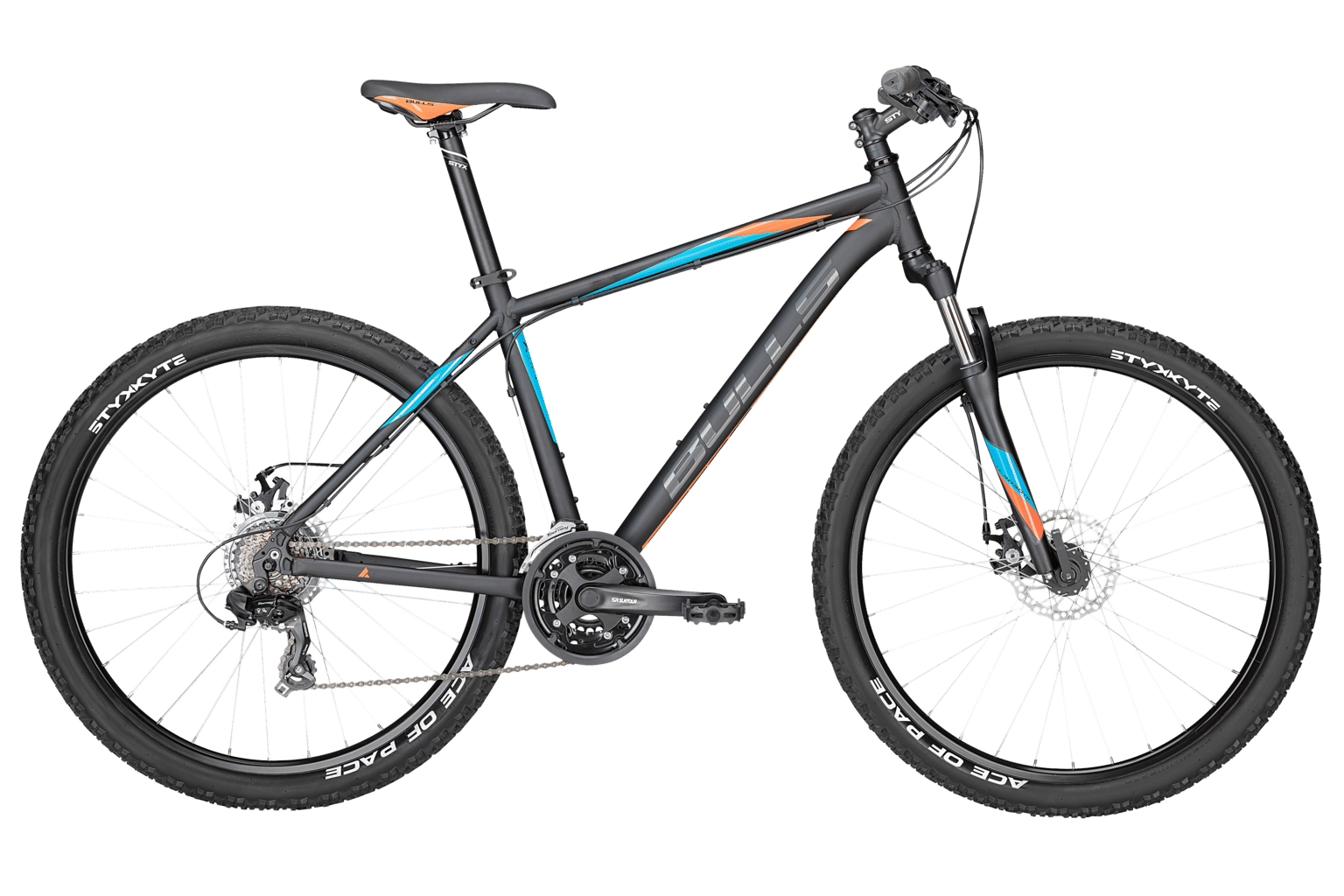

2017 Bulls Wildtail Disc 27.5 geometry
Full frame geometry for the 2017 Bulls Wildtail Disc 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 564 | 392 | 73 | 70 | 100 | 565 | 410 | 45 | 440 | 1064 |
| M | 578 | 408 | 73 | 70 | 120 | 585 | 460 | 40 | 440 | 1087 |
| L | 602 | 421 | 73 | 70 | 145 | 605 | 510 | 40 | 440 | 1108 |
| XL | 625 | 434 | 73 | 70 | 175 | 625 | 560 | 35 | 440 | 1132 |
All measurements in millimetres unless marked (°) for angles.
