2025 Bulls · G

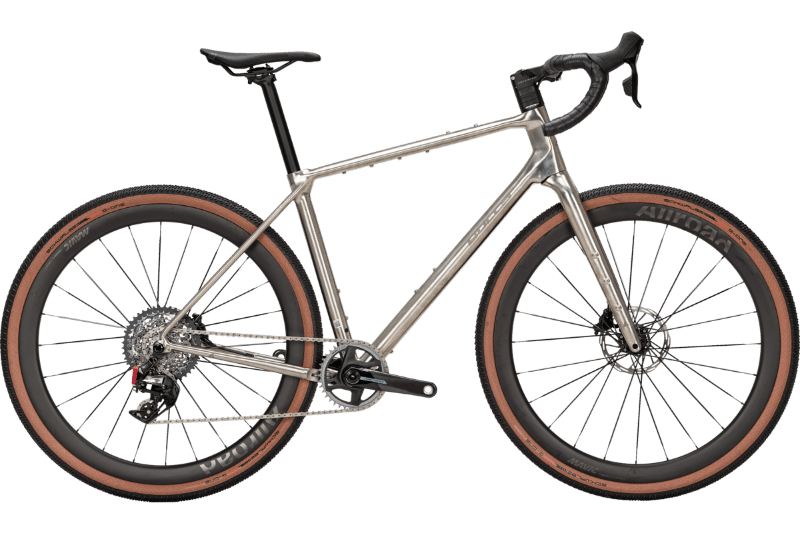

2025 Bulls Mache-Ti geometry
Full frame geometry for the 2025 Bulls Mache-Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 562 | 385 | 74 | 70 | 125 | 546 | 450 | 70 | 433 | 1039 |
| M | 586 | 402 | 74 | 70 | 150 | 570 | 470 | 70 | 433 | 1065 |
| L | 614 | 411 | 74 | 70 | 180 | 587 | 510 | 70 | 433 | 1084 |
| XL | 635 | 428 | 74 | 70 | 203 | 610 | 550 | 70 | 433 | 1109 |
All measurements in millimetres unless marked (°) for angles.
