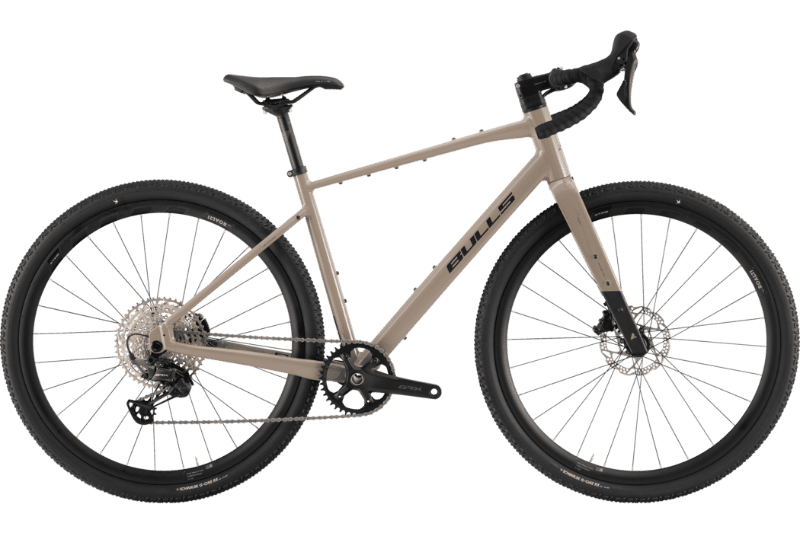

2026 Bulls · G
2026 Bulls Grinder geometry
Full frame geometry for the 2026 Bulls Grinder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 567 | 372 | 74 | 71 | 140 | 535 | 450 | 75 | 440 | 1033 |
| M | 590 | 391 | 74 | 71 | 160 | 560 | 480 | 75 | 440 | 1049 |
| L | 609 | 400 | 74 | 71 | 180 | 575 | 520 | 75 | 440 | 1065 |
| XL | 632 | 419 | 74 | 71 | 205 | 600 | 560 | 75 | 440 | 1092 |
All measurements in millimetres unless marked (°) for angles.
