2026 Bulls · G

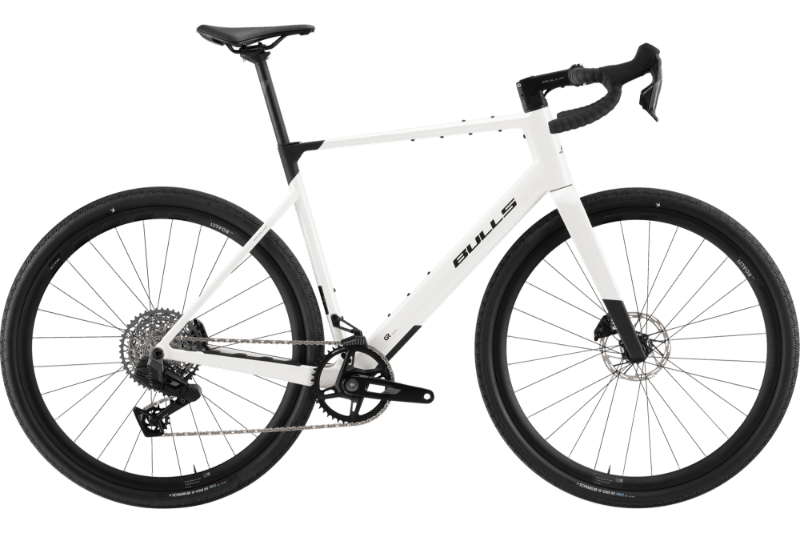

2026 Bulls Machete RX geometry
Full frame geometry for the 2026 Bulls Machete RX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 556 | 376 | 74 | 72 | 135 | 535 | 470 | 72 | 425 | 1004 |
| M | 570 | 397 | 74 | 72 | 150 | 560 | 500 | 72 | 425 | 1030 |
| L | 599 | 403 | 74 | 72 | 180 | 575 | 540 | 72 | 425 | 1046 |
| XL | 622 | 422 | 74 | 72 | 205 | 600 | 580 | 72 | 425 | 1072 |
All measurements in millimetres unless marked (°) for angles.
