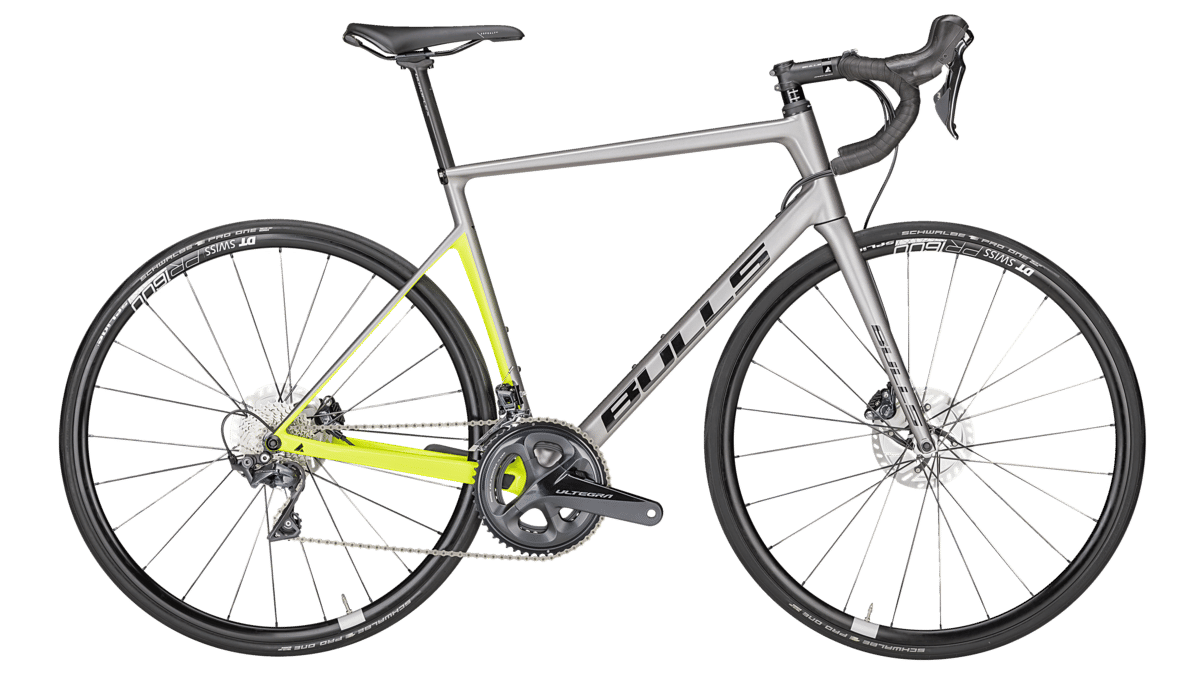

2017 Bulls Alpine Hawk MK II geometry
Full frame geometry for the 2017 Bulls Alpine Hawk MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 372 | 74 | 72 | 110 | 521 | 480 | 73 | 408 | 966 |
| S | 536 | 379 | 74 | 73 | 130 | 538 | 500 | 73 | 408 | 974 |
| M | 555 | 386 | 73 | 73 | 150 | 553 | 520 | 73 | 408 | 982 |
| L | 573 | 393 | 73 | 74 | 170 | 568 | 540 | 70 | 412 | 994 |
| XL | 594 | 400 | 73 | 74 | 190 | 584 | 560 | 70 | 412 | 1003 |
| XXL | 613 | 408 | 73 | 74 | 210 | 600 | 580 | 70 | 412 | 1015 |
All measurements in millimetres unless marked (°) for angles.
