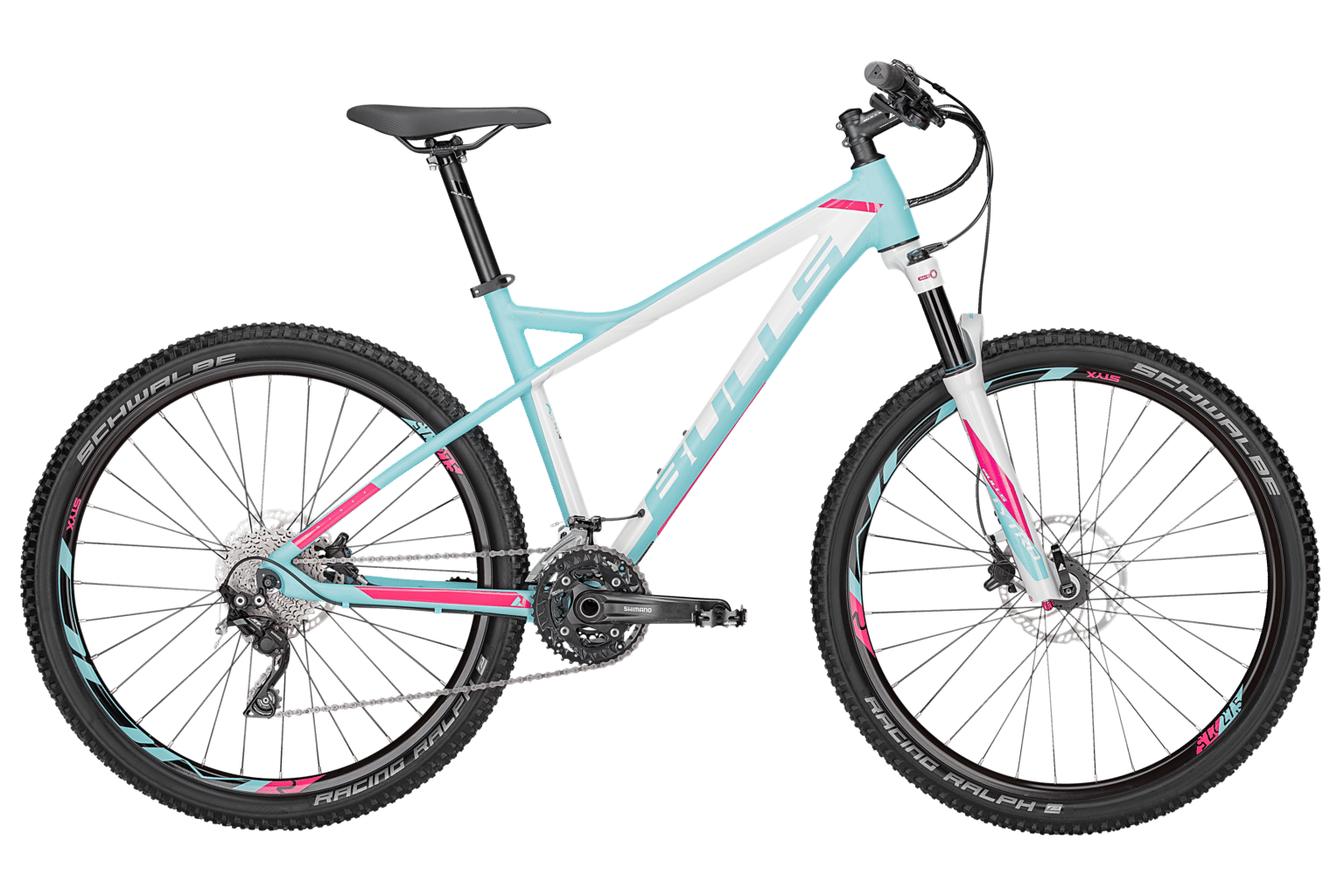

2017 Bulls Aminga 27.5 geometry
Full frame geometry for the 2017 Bulls Aminga 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 380 | 73 | 70 | 105 | 560 | 410 | 45 | 430 | 1050 |
| XS | 590 | 375 | 73 | 70 | 105 | 555 | 370 | 45 | 430 | 1045 |
| M | 594 | 388 | 73 | 70 | 115 | 570 | 460 | 40 | 435 | 1068 |
| L | 608 | 394 | 73 | 70 | 130 | 580 | 510 | 40 | 435 | 1079 |
All measurements in millimetres unless marked (°) for angles.
